Blister packing machine

S-22 S-23
S-24
S-24D

These machines are used for pack plastic blister with card board, aluminum sheet or plastic sheet. These machine have two kinds of packing way, one is direct heating type, another is instant heating type.

We had to put the plastic blister, goods for packing and card board on the mould by hand.

The advantage of instant heating type :

sealing the cardboard with PVC/PET blister instantly, and the cardboard will not deform. The products can sealed perfectly by blister.

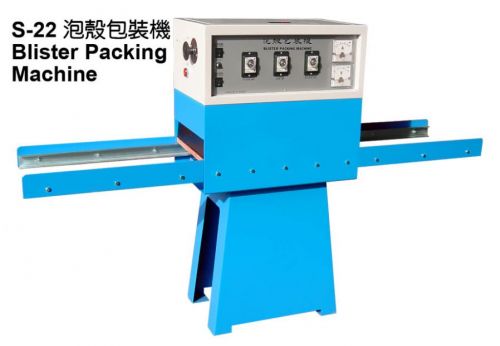

S-22:

1.Mould move in and move out of the packing area: by manually.

2.Discharge the product: by manually.

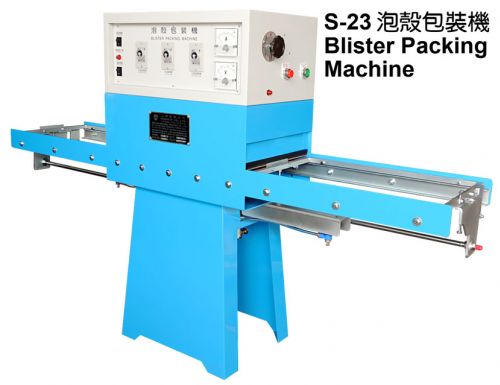

S-23:

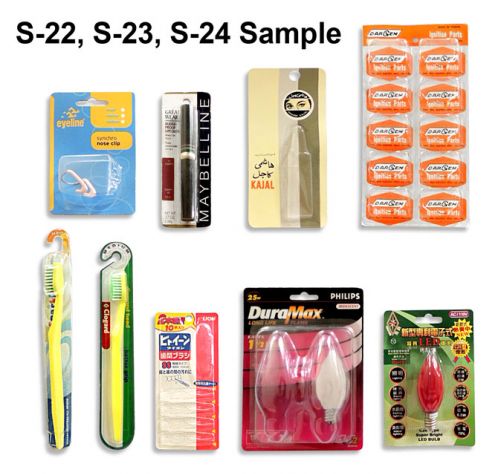

Seal blister with card board, plastic sheet or aluminum foil. Such as toy, battery, tool packing by blister with card board for hanging in super market. This machine is semi-automatic.

We had to put the plastic blister, goods for packing and cardboard on the mould by hand.

1.The mould will move into and move out the packing area by air cylinder.

2.Discharge the product: by manually.

Specification / Model		S-22	S-23
Air Compressor (Item by order)		1/4 HP	1/2HP
Heater Impulse Type	Avg.	250 W	250W
Heater Impulse Type	Max.	1.5 KW	1.5KW
Direct Heating Type		2 KW	2 KW
Mechanical Dimensions (L × W × H)		1900 × 510 × 1220 mm	1960 × 600 × 1220 mm
Weight		95 kg	115 kg
Mould Size		380 x 600 mm	380 x 600 mm
Max. Packing Depth		100 mm	100 mm
Max. Packing Pressure		500 kg	500 kg
Air Consumption (Liter / Minute)		50 L/Min.	100 L/Min.
Max. Packing Stroke	Depth	50 mm	50 mm
Max. Packing Stroke	Long	600 mm	600 mm
Moulds installed (pcs mould/machine)	Max.	2 PCS	2 PCS
Moulds installed (pcs mould/machine)	Min.	1 Piece	1 Piece

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C.
彰化市大埔路 67-1 號
TEL: +886-4-7111167, 7111168, 7110728
FAX: +886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net

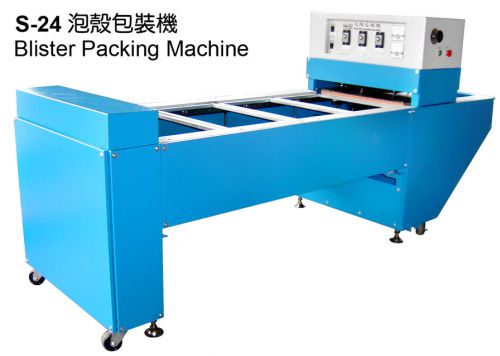

This machine seal PVC/PET blister with card board. This machine have two kinds of packing way, one is direct heating type, another is instant heating type.

Advantage: Sealing the cardboard with PVC/PET blister instantly, and the cardboard will not deform. The products can sealed perfectly by blister. The output is decuple than high frequency sealing machine.

Such as toy, battery, tool packing by blister with cardboard, which can hang in super market. This machine is for big output capacity.

We had to put the plastic blister, goods for packing and cardboard on the mould by hand.

The conveyor will move the mould into the sealing area. It will auto sealing and auto knock out production after sealing by cylinder.

Specification / Model		S-24
Air Compressor (Item by order)		1HP
Heater Impulse Type	Avg.	500 W
	Max.	3 KW
Direct Heating Type		2 KW
Mechanical Dimensions (L × W × H)		2740 × 940 × 1260 mm
Weight		470 kg
Mould Size		380 × 600 mm
Max. Packing Depth		100 mm
Max. Packing Pressure		500 kg
Air Consumption (Litre / Minute)		130 L / Min.
Max. Packing Stroke	Depth	50 mm
	Long	400 mm
Moulds installed (pcs mould / machine)	Max.	12 PCS
	Min.	6 Piece

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C
彰化市大埔路 67-1 號
TEL: 886-4-7111167, 7111168, 7110728
FAX: 886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net

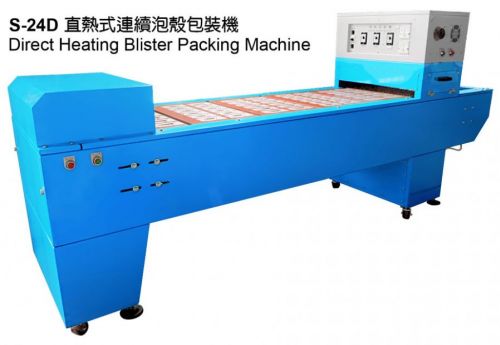

This machine S-24D is used for pack plastic blister with card board or plastic sheet.

We had to put the plastic blister, goods for packing and card board on the mould by hand.

The direct heating blister packing machine has a cooling and pressure installation, it can flatten the cardboard after heating the production.

1. Mould move in and out of the packing area: by motor and chain.

2. Discharge the product: auto. By cylinder.

Specification / mode	S-24D
Air compressor (option)	1 HP
Direct heating type	3.2 kw
Mechanical dimensions(L × W × H)	3000 mm × 820 mm × 1300 mm
Weight	550 kg
Mould size	400 mm × 350 mm
Max. Packing depth	100 mm
Max. Packing pressure	6 kg/cm2
Moulds installed	14 PCS
