Sealing machine series

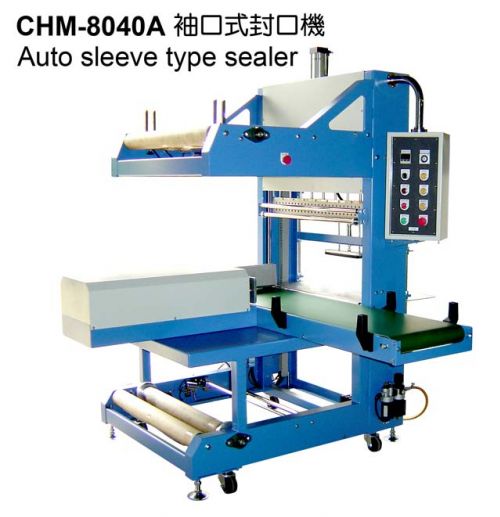

CHM-8040A
S-250 S-260

1.The sleeve sealer machine has auto feeding, pushing and sealing function. It also can connect to the shrink packaging machine.

2.The sleeve sealer machine is designed according to product’s size, shape and material. The convey styles are divided into straight type path and 90 degrees turning.

3.The sleeve sealer machine can be used independently or cooperate with the automatic production line.

4.Auto PE/PVC film packing/ shrinking machine.

5.PLC control system. It can increase the production and it is available for computerized production line.

Model	CHM-6030A	CHM-8040A
Model	Auto Sleeve Type Sealer (Two Sides Sealed)	Auto Sleeve Type Sealer (Two Sides Sealed)
Power	3 Phase 220V/380V	3 Phase 220V/380V
Power Consumption	1.8 KW	2.0 KW
Sealing Frame Size	600 mm(W) × 300 mm(H)	800 mm(W) × 400 mm(H)
Convey Speed	12 M/min	12 M/min
Conveyor Size	300 mm(W)	400 mm(W)
Working Table Height	H=800+50 mm	H=800+50 mm
Machine Size	2100 mm(L) × 1500 mm(W) × 2000 mm(H)	2200 mm(L) × 1600 mm(W) × 2100 mm(H)
Air Compressor	1 HP	1 HP

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C.
彰化市大埔路 67-1 號
TEL: +886-4-7111167, 7111168, 7110728
FAX: +886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net

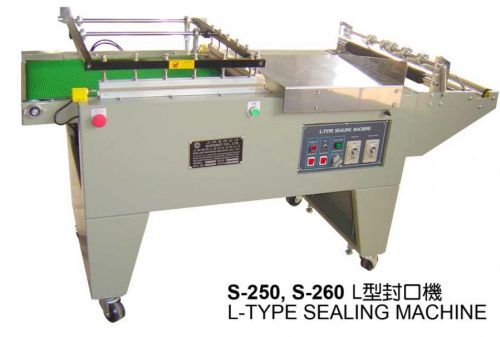

Features:

1. The L-type sealer uses the folding type of shrink film in roll shape. It need manual to loading the production for sealing. It is designed with automatic delivery. The products are sent into the shrink packaging machine automatically after process of sealing & cutting is finished.

2. The sealing device is action by a pneumatic cylinder. We need manual to put the packing article into the middle of the shrink film then push the start button to let the sealing frame downward to sealing the film and after the heating time. It will open the sealing device in auto.

3. The sealing & cutting control is using of instantaneous heating. Speedy sealing & cutting, electricity saving. Available to change the sealing time & cutting and temperature required upon the thickness of plastic film.

4. 3 sections temperature control (high, middle, low) keeps the sealing line in good situation.

5. Conveyor height for L-type sealer can be adjusted. Its sealing height can be adjusted depends on product’s size in order to made a prefect sealing effect.

6. Customized specifications are available for large products.

7. The standard is impulse heating type sealing method. We also accept the direct heating type order when you have any necessary.

Model	S-250	S-260
Power	Single phase 220V / 230V / 240V	Single phase 220V / 230V / 240V
Power consumption	1200W	1500W
Sealing frame size	L: 500 × W: 500 × H: 10~250 mm	L: 600 × W: 600 × H: 10~300 mm
Convey speed	0~10 M/min	0~10 M/min
Conveyor size	W=475 mm	W=575 mm
Working table height	H=800+50 mm	H=800+50 mm
Machine size	L: 1700 × W: 900 × H: 1050 mm	L: 1900 × W: 1000 × H: 1050 mm

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.
