Function:

1. Cutting point preset: none-pressure presetting device, which is ease to adjust and avoid to damage the cutting die.

2. Timer: it could setting the upward time to match the cutting products high.

3. Upward the cutting pressure table: it could upward the cutting pressure table at any position, do not need to stop the machine.

4. Easy operation and noiseless operation.

5. Two steps of downward cutting action: this device is used for decrease the detraction of knife and cutting form each time of cutting. It will able to use much long period of time compare with one step downward cutting action.

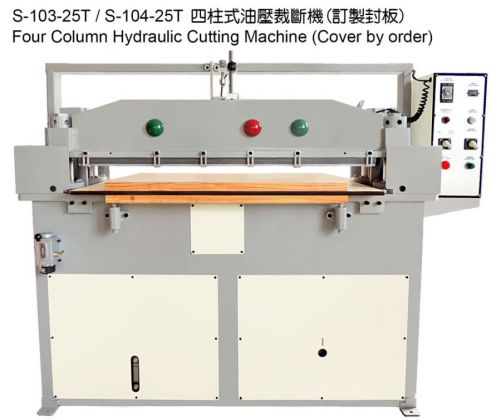

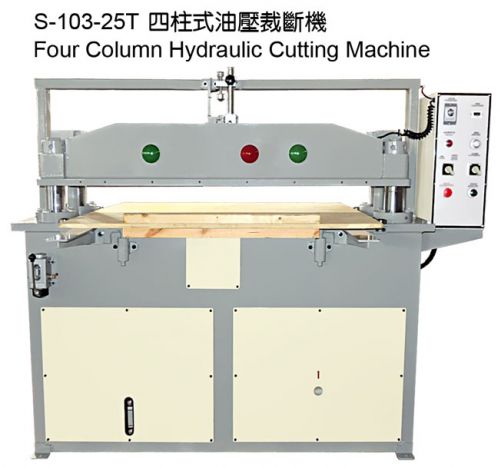

Specification/Model	S-103-25T	S-104-25T
Max. pressure	25 ton	25 ton
Net weight	1800 kg	1900 kg
Max. cutting stroke	150 mm	150 mm
Min. cutting stroke	60 mm	60 mm
Motor	5 HP	5 HP
Cutting pressure table	495 × 1200 mm	495 × 1500 mm
Cutting speed	6-10 cycle/min	6-10 cycle/min
Mechanical dimension	1950 × 900 × 1540 mm	2250 × 900 × 1540 mm

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C.
彰 化 市 大 埔 路 67-1 號
TEL: +886-4-7111167, 7111168, 7110728
FAX: +886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net

This machine is use to cut plastic, leather, card board or sponge with the shape.

Function:

1. Strong metal sheet: all the metal adopts the high quality strong metal, which will keep the machine in flat.

2. It offer a steady average cutting pressure which will keep the cutting mould in a best condition for using and will keep the knife in sharp. It wills also cutting full sheet production at one time without any loose in cutting.

3. Adjustable forward and backward pressure: you can adjust the forward and backward speed easily.

4. Stainless steel cutting cushion: clean, no dust, best one for food container cutting.

5. Easy operation and noiseless operation.

6. Two side cutting pressure are separate setting. It will better for mould using time.

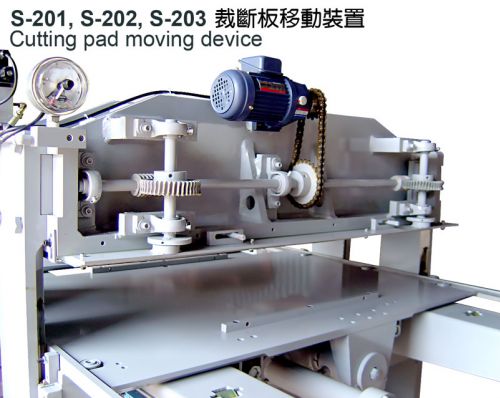

7. Cutting pad removable device. This machine can set the cutting pad move a bit after each cutting action. This device design for protecting the cutting pad have a better use life

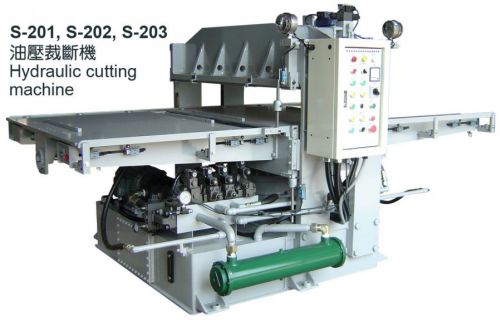

Specification / Model	S-201	S-202	S-203
Cutting Capacity	20-150 ton.	20-150 ton.	20-150 ton.
Max. Shear Stroke	200 mm	200 mm	200 mm
Net Weight	5000 kg	5500 kg	6000 kg
Mechanical Dimension ( L×W×H )	2900 × 1900 × 1500 mm	3300 × 1900 × 1500 mm	3900 × 1900 × 1500 mm
Motor	7.5 HP	7.5 HP	10 HP
Top Cutting Table size	720×1400 mm	820×1400 mm	1020×1400 mm
Max. Cutting Area	680×1200 mm	780×1200 mm	980×1200 mm
Max. Cutting Pressure	150 Kg／cm2	150 Kg／cm2	150 Kg／cm2
Working Pressure	20 - 130 kg／cm2	20 - 130 kg／cm2	20 - 130 kg／cm2
Cutting Speed	6-8 round／min.	6-8 round／min.	6-8 round／min.
Oil Temperature	Between 15-40 ℃	Between 15-40 ℃	Between 15-40 ℃

The video of the actual operation and molding of the S-13A can be watched in this YouTube link:

(1)S-201 hydraulic cutting machine -cut off 1 layer fruit box:：
Click here-1

(2)S-201 hydraulic cutting machine -cut off 3 layer of PET tray:
Click here-2
