Food Vacuum Packing machine
Adopt double sealing line design, which could assure the packing quality.
1. All of the control sequences and push buttons is on the panel, easy operation.
2. The main body and covers use high quality stainless steel, firm and solid with good airtight.

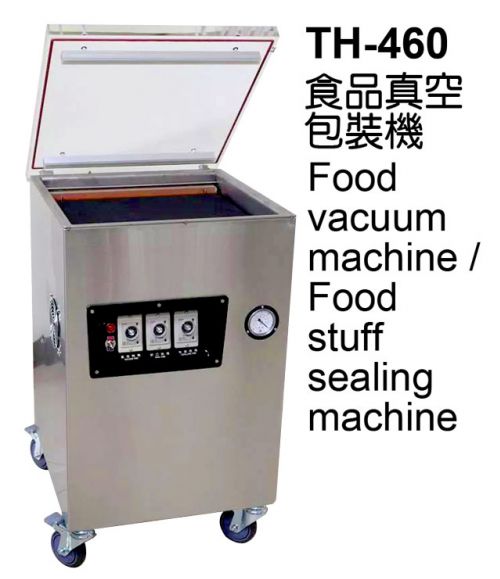

3. Model TH-350 and TH-460 adopts the transparent lid. You could see the inside operating situation clearly.
4. Our machine adopts Germany Busch vacuum pump for high quality vacuum and efficiency packing capacity.
5. Suitable for using in factory, restaurant, food shop, for example packing meat, chicken or seafood. It also can use in supermarket, hospital, computer IC part package. These machine can keep the food in fresh and escape the rusty on component.
6. This machine also can vacuum the air in liquid for industrial use. For example the epoxy resin use in small transformer, it will create air bubble when mix and pour epoxy resin into transformer. The air bubble will decrease the quality of insulation.
This machine can vacuum out the extra air in epoxy resin, release this question. The function is special design need to order.
7. We also accept the special size order.
Our specification as the following

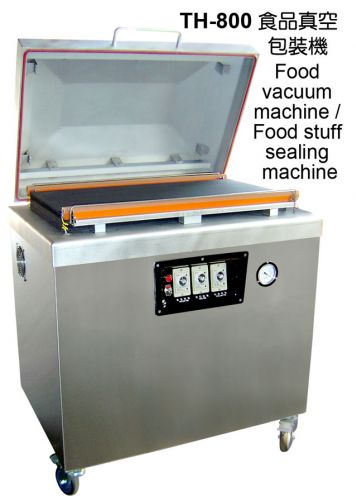

| Model | TH-350 | TH-460 | TH-800 |
| Vacuum pump | 0.5HP / 0.25HP | 1 HP | 2 HP |
| Power source | 110V/220V. 1P. 50/60 HZ | 220V. 1P. 50/60 HZ | 220V .3PH / 15A |
| Sealing length | 310 mm | 2 Pcs × 460 mm | 2 Pcs × 800 mm |
| Vacuum chamber (L)×(W)×(H) |
330 x 340 x 130 mm | 480 × 480 × 130 mm | 830 × 550 × 180 mm |
| Mechanical size | 370 × 440 × 500 mm | 480 × 500 × 900 mm | 920 × 650 × 1050 mm |
| Weight | 50 kg | 90 kg | 180 kg |
