Shrink tunnel machine

S-4020E~S-8040E hot air type shrink machines for PE films; they can also be used with PVC, PP, and POF films.

S-310~S-421
S-4020
S-4020E

This machine used a shrink film to tied up the production. Standard have about 14 model of machines.

We also accept size by order.

The different machine fit for PE, PVC and PP shrink film, and other special film shrink could be accepted.

Features:
The infrared ray shrink tunnel take advantage of infrared ray to heat PVC/PP shrinkage film without influence the product. The machine is light and compact, working speed is 6M/min.

Accurate setting of temperature is achieved through two sets of the latest automatic thermostat. Both of top and bottom temperature settings.

It may be varied as desired to meet various product sizes, which provides an excellent shrink packing operations for a wide variety of products.

It can also lower the possibility of film breakage for saving packing cost.

Speed can be up to 7.5 M/min less than 10 minutes, it required to heat the unit to operation temperature first.

The last number of model is 0, the thermostator is knob type temperature controller.

The last number of model is 1, the thermostator is number type temperature controller.

Applications: Food, fruits, salted foods, toy,stationery, drugs, electric, parts, hardware, necessaries etc.

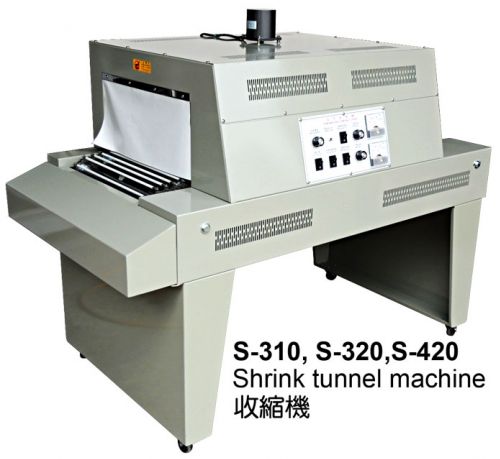

Model	Machine Size	Watts	Shrinking Size	Oven Long
S-310, S-311	1180×600×1050 mm	5KW	350 × 150 mm	700mm
S-320, S-321	1180×600×1100 mm	5KW	350 × 200 mm	700mm
S-420, S-421	1330×700×1100 mm	6KW	400 × 200 mm	800mm
S-430, S-431	1330×700×1200 mm	6KW	400 × 300 mm	800mm
S-440, S-441	1330×700×1300 mm	6KW	400 × 400 mm	800mm
S-421L	1330×700×1100 mm	7KW	400 × 200 mm	1000mm

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C.
彰化市大埔路 67-1 號
TEL: +886-4-7111167, 7111168, 7110728
FAX: +886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net

This machine is used a shrink film to tied up the production. This machine fit for POF, PVC and PP shrink film. We also accept special size by order.

1. The traditional heat conduction type heating method.

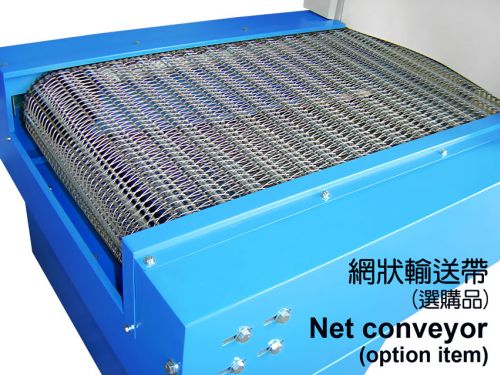

2. The conveyor for heat shrink can adopt the close-roller type or net type model, suitable for big or small products. (The net type is option item.)

3. The conveyor speed for heat shrink and the tunnel temperature can be easily adjusted in order to accomplish the perfect shrinking effect.

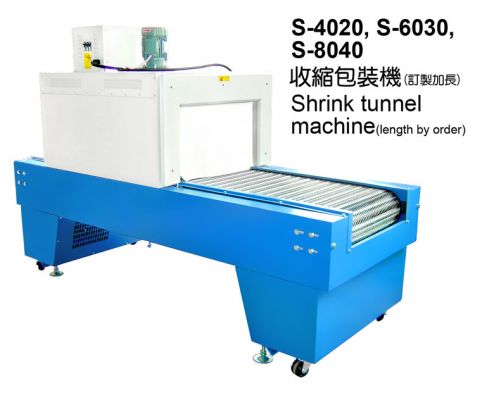

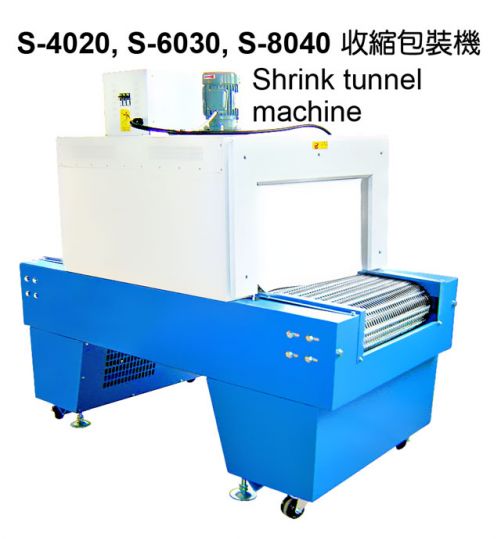

Model	Machine Size	Watts	Shrinking Size	Oven Long
S-4020	1600×730×1400 mm	9.6KW	400 × 200 mm	1000 mm
S-6030	1600×930×1500 mm	15KW	600 × 300 mm	1000 mm
S-8040	2000×1130×1600 mm	18KW	800 × 400 mm	1200 mm

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

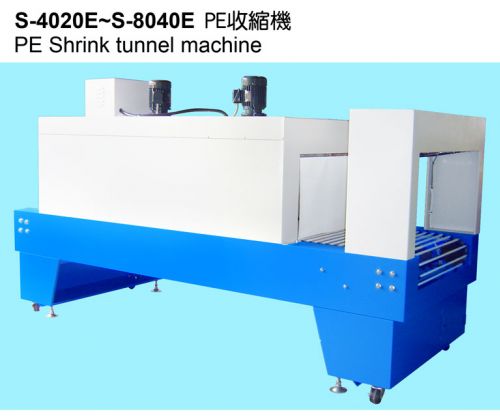

1.This serious machine adopts heat circulating type tunnel which will have average heating temperature. It has a longer heating oven which is fit the PE film shrink action.

2.The cooling fan is installed in the exit of shrink packaging machine in order to accomplish the perfect shrinking effect.

3.There are two conveyor models to choice—roller type and net type, suitable for big and small products. The net type is option item.

4.Special designed for PE film packaging. It could also shrink PVC, PP, POF,....etc. material. But this type of machine cost higher.

5.Auto temperature control can be adjusted for desired temperature.

6.Conveyor speed is adjustable.

Applications: It fit for shrinking the products like retort pouch(tetra pack), plastic bottle, carton...etc.

Model	Machine Size	Watts	Shrinking Size	Oven Long
S-4020E	2400×770×1430 mm	12 KW	400 × 200mm	1500 mm
S-6030E	3000×970×1570 mm	24 KW	600 × 300mm	1800 mm
S-8040E	3000×1170×1550 mm	36 KW	800 × 400mm	2000 mm
